Shining EinScan-SP V2 3D Scanner
Shining EinScan-SP V2 3D scanner has turntable and without turntable dual scan modes with unlimited scan range!
Key Features
．Shining EinScan-SP V2 3D scanner is certified by a professional and rigorous accuracy calibration
．Achieve 0.05mm high accuracy, high speed and resolution scanning system
．Fulfill all kinds of reverse engineering, high quality 3D design and 3D printing applications.

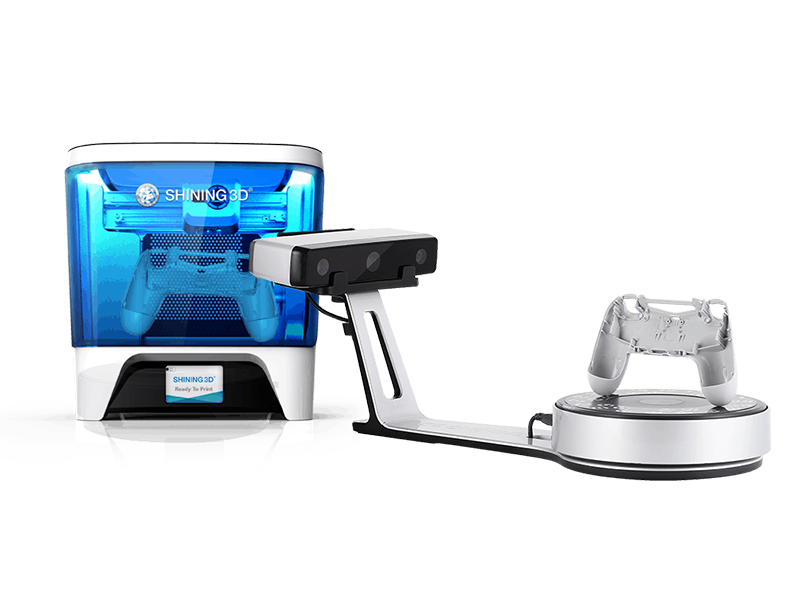

Extensive Scanning Range from Small to Large

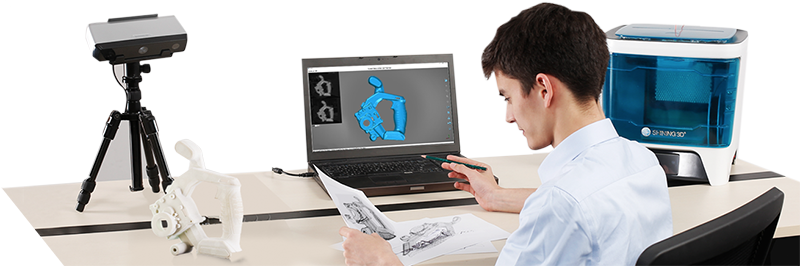

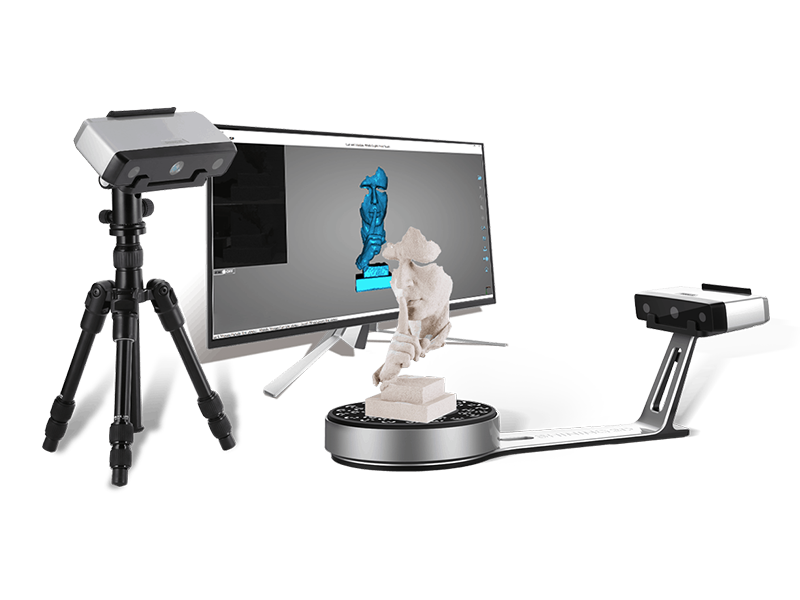

Scanning can be performed using a turntable for automatic scanning or a tripod for manual scanning, depending on the size of the object.
Easy to Use, Faster Scanning Speed
EinScan-SP V2 has a one-click scan function that can automatically calibrate without the need for a rigid setup. Just 1 second for a single scan and 45 seconds for a 360 degree scan in Auto Scan mode!

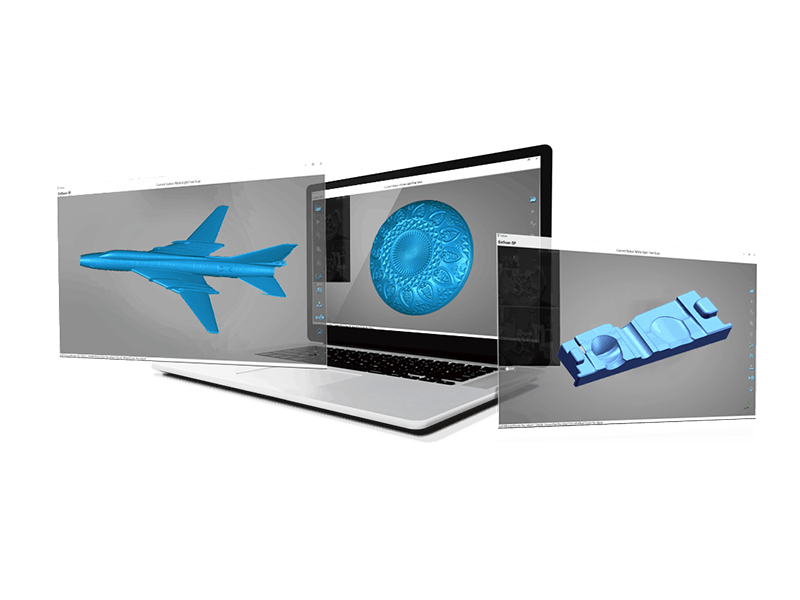

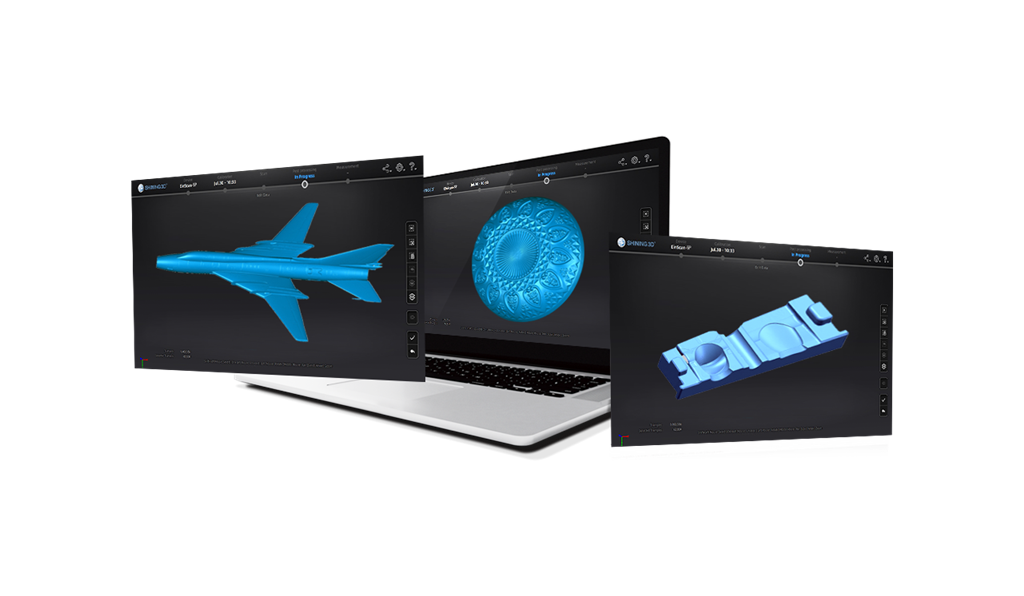

Fine Details and Multiple Mode
EinScan-SP V2 provides highly detailed reproduction of display data and has different align mode, such as Markers Align, Turnable Align and Manually Align.

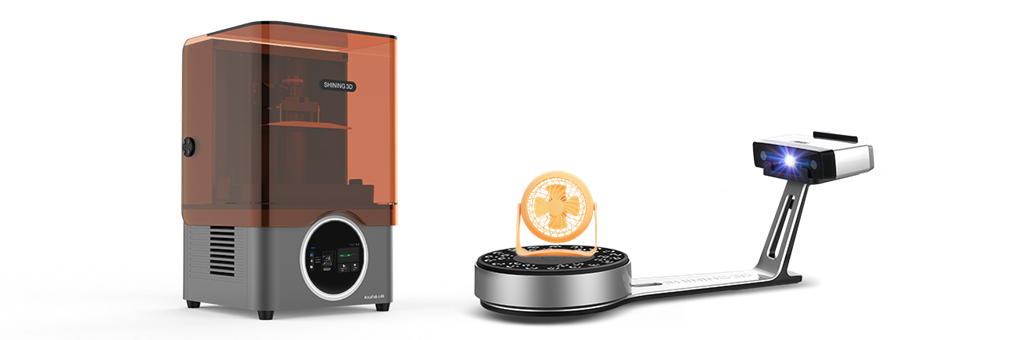

Compatible with Any 3D Printers
Auto meshing to watertight 3D data, seamlessly connect to 3D printers and provide API access service for any brand 3D printers.

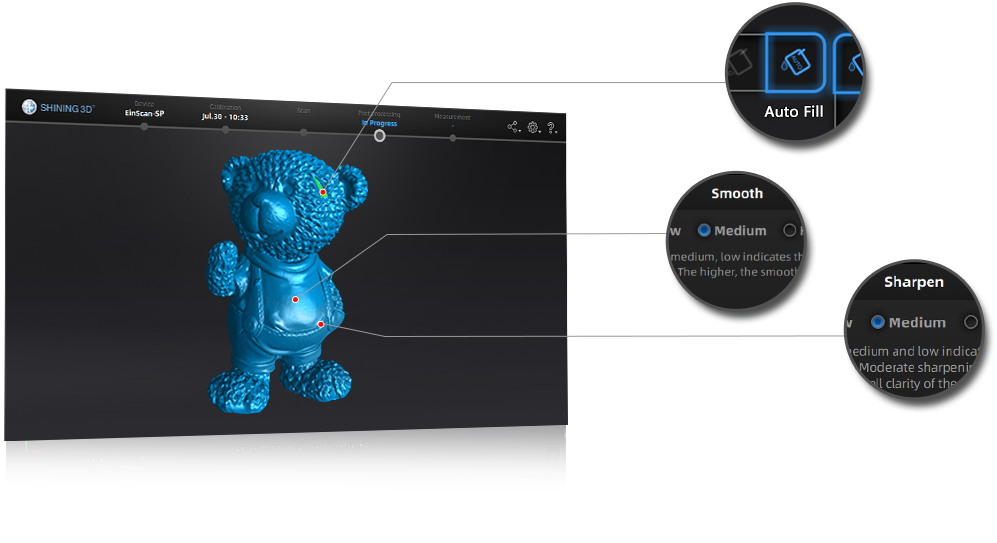

Extensive Post-processing Functions
EinScan-SP V2 software includes hole filling, smoothing and sharpening functions, smoothing and sharpening functions, as well as the ability to post-process data coordinates in post-processing to provide perfect 3D data for subsequent applications. Perfect 3D data for subsequent applications.

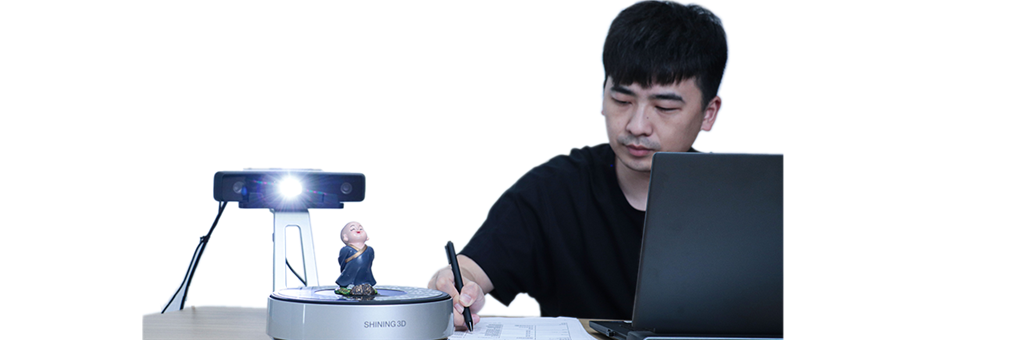

Various Application
Explore fast scanning experience and make the high-resolution scanning avaliable to everyone, such as reverse engineering and design in office.

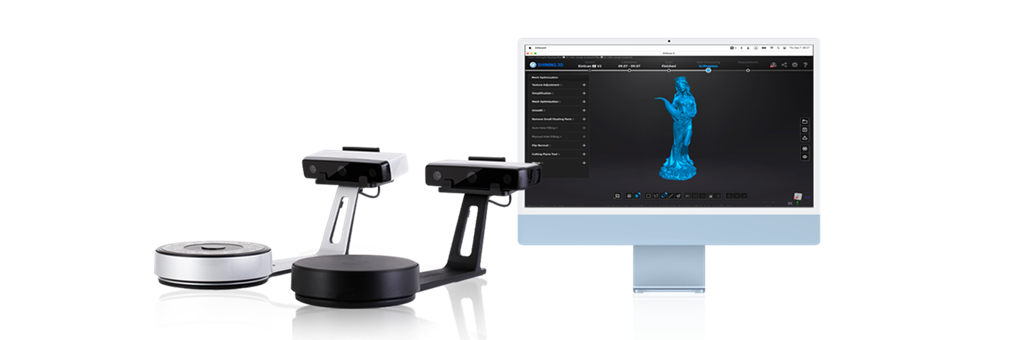

Perfect for macOS
EXScan S
．Support for macOS
．Intuitive Trackpad Gestures
．Background Cutting Function
．Quick Alignment
．Updated UI Interface
．Various Align Modes
With the Shining EinScan-SP 3D scanner it's easy to reverse engineer your designs in the office and experience fast, high quality scanning. Contact us to get more information of 3D scanners!
| Scan Mode |
Fixed Scan with Turntable Fixed Scan without Turntable |
| Align Mode |
Manually Align, Feature Align, Turntable Align, Markers Align, Turntable Coded Target Align |
| Scan Accuracy |
≤0.05mm |
| Minimum Scan Volume |
30 x 30 x 30mm |
| Maximum Scan Volume |
Fixed Scan：1200×1200×1200mm
Turntable：200×200×200mm |
| Single Scan Range |
200 x 150mm |
| Scan Speed of a Single Shot |
<1s |
| Scan Speed of One Turn |
<45s |
| Point Distance |
0.17?0.2 mm |
| Color Scan |
Supported |
| Output Format |
OBJ, STL, ASC, PLY, 3MF |
| Camera Resolution |
1.3MP |
| Light Source |
White LED |
| Working Distance |
290?480 mm |
| Power Supply |
12V, 3.33A, 40W |
| Computer Requirements |
OS：Win7, 8, 10 (64bit) CPU：Intel Dual Core i5 or higher; RAM：>16 GB Graphics Card：Nividia GTX660 or higher Video Memory：>2GB USB：1×USB 2.0 or 3.0 |
| Device Size |
570 x 210 x 210 mm |
| Package Size |
640 x 410 x 230 mm |
| Weight |
4.2 KG |
| Certificate |
CE, FCC, ROHS, WEEE |
| Calibration Board |
High Accuracy Calibration Board |
| Turntable |
With Coded Targets |
| Turntable Loading Capacity |
5 KG |
| Attachments |
Tripods, Software for Solid Edge Shining 3D Edition |
