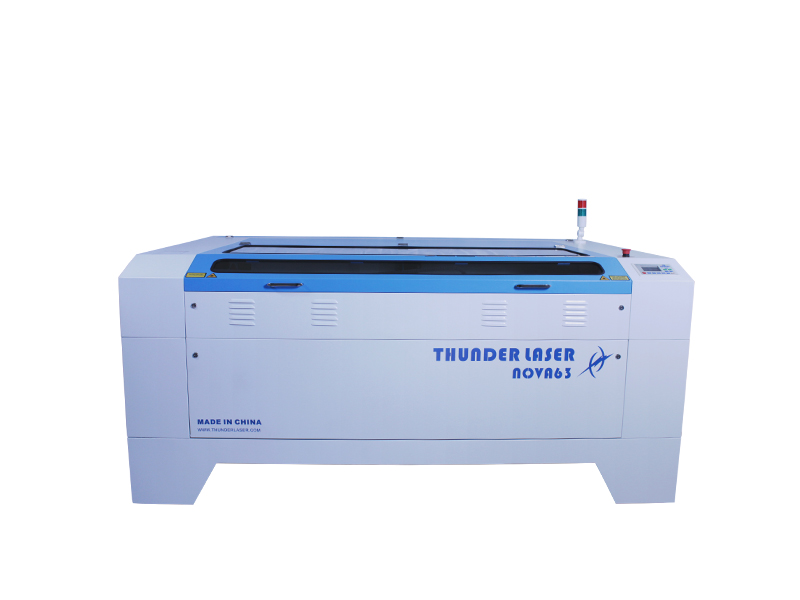

Thhunder Nova Laser Cutter 63 Series - 100W/130W
The NOVA laser cutter features a hybrid servo motor with high resolution and excellent engraving quality for superior cutting and engraving results, and is designed for ease of use and a user-friendly interface. The laser processor can be equipped with either an 100W or 130W laser.
Product Features：

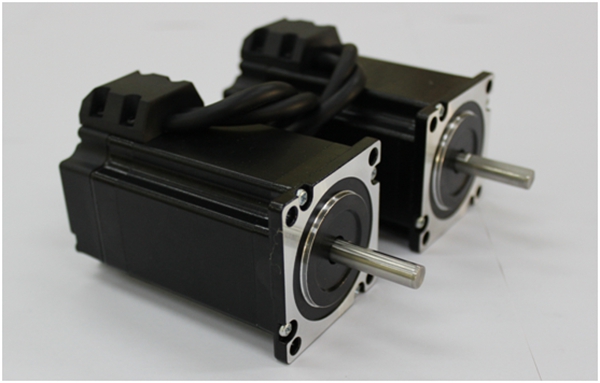

．Hybrid servo motor with 1000mm/s speed for photo engraving, ultra-smooth vector cutting quality.

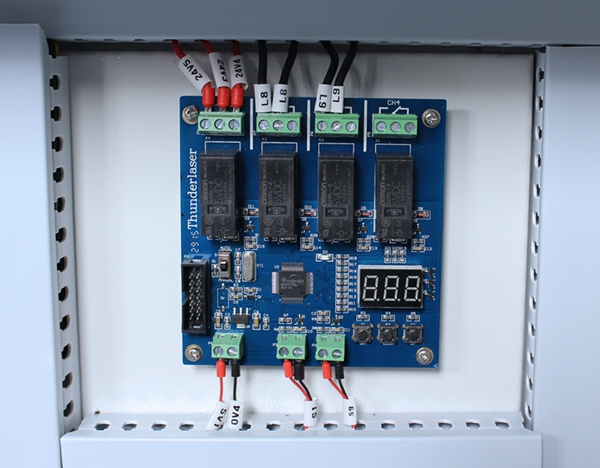

．Intelligent board for automatic exhaust fan, warning light, power saving mode, etc. Developed and designed in-house by Thunder Laser, the board can automatically control the switch of the exhaust fan according to the needs of the laser work.

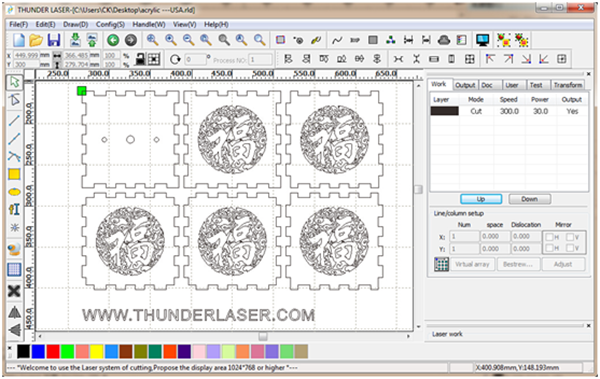

．The RDWorksV8 laser software has many features that allow users to import files in many formats into the software and set up.

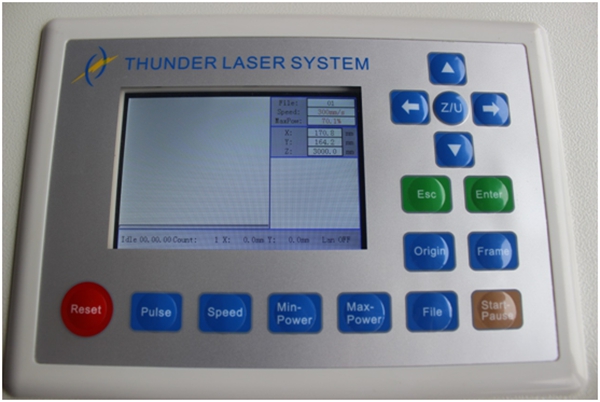

．Users can control the laser engraving tool through the LCD panel, such as raising and lowering the working platform, autofocus, moving the laser head, setting the starting point, changing the speed and adjusting the power, etc. In addition, users can use the LCD panel to preview the working path, estimate the working time and change the parameters.

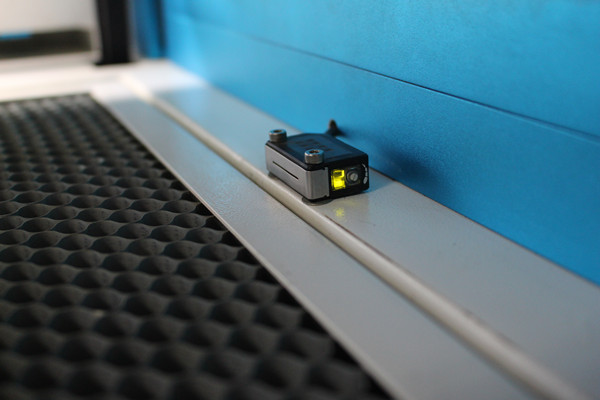

．The autofocus function of the Nova system focuses the laser light during operation. The smaller the laser beam, the better the performance. The autofocus can be moved up and down to ensure the optimum distance between the material and the focusing lens, saving time when cutting and engraving.

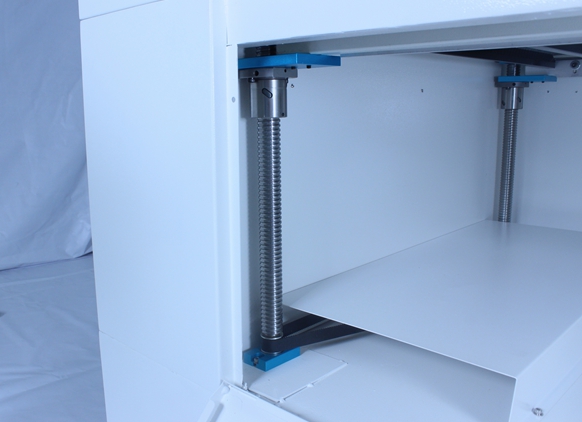

．Pressing the "Z-axis" icon on the control panel allows the table to move up and down as required, which is very useful when cutting and engraving large objects such as wooden boxes, and when using the rotary axis accessory to engrave curved objects.

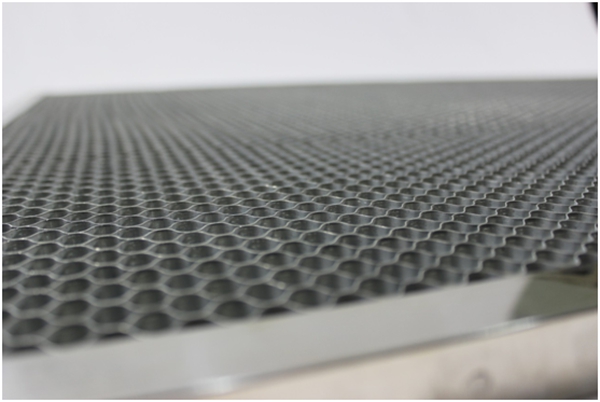

．The honeycomb platform allows the laser light to pass through the material, improving the working efficiency and reducing the reflectivity of the laser on the material, which improves the cutting effect of the laser cutting and engraving machine; the mist and dust are discharged directly from the bottom, reducing the impact on the finished product, and it is suitable for processing materials such as leather, fabric, paper and so on.

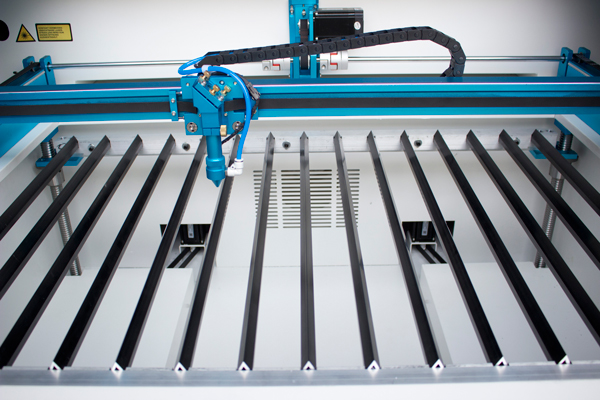

．When cutting thick materials such as 20mm acrylic or wood on a CO2 laser engraving and cutting machine, the aluminium platform of the laser cutting machine can be adjusted to the density of the aluminium blades according to the size of the object, so that the object can be suspended in it to reduce the effect of laser reflection.

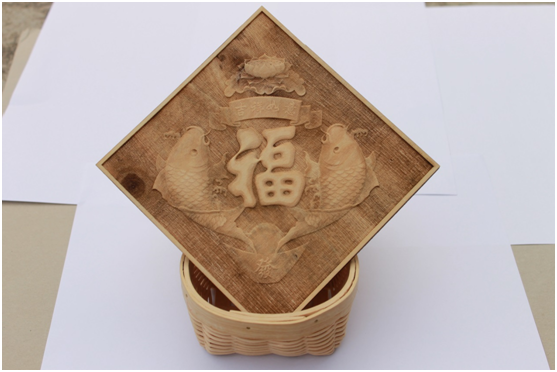

．The laser software can adjust the laser power according to the grey scale of the image to achieve different depths of engraving effects, giving the image a relief three-dimensional texture; the laser cutter can be set to different focusing distances, such as PET and acrylic; the software is used to set different parameters for the layers separately and cut the file easily.

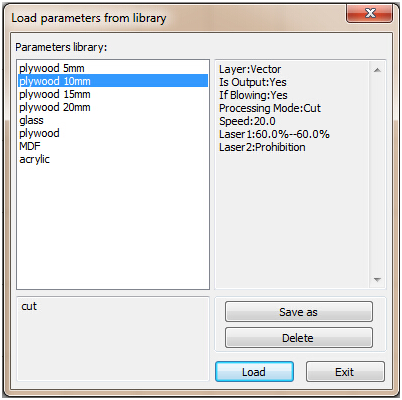

．Parameter Database The Thunder Laser software has a parameter database that makes it easy to save different values for each material, so that the next time you want to work with the same material, you can simply download the saved parameters directly from the database.

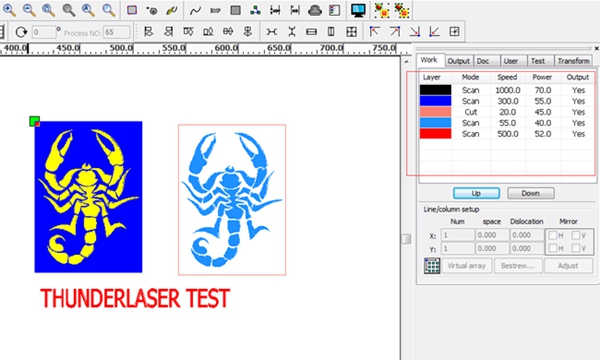

．Multiple colour layer mapping settings Set different parts of your design to different colour layers and adjust the cutting speed and power for each layer as required. No matter how complex the shape, it can be processed in a single pass through the layer settings.

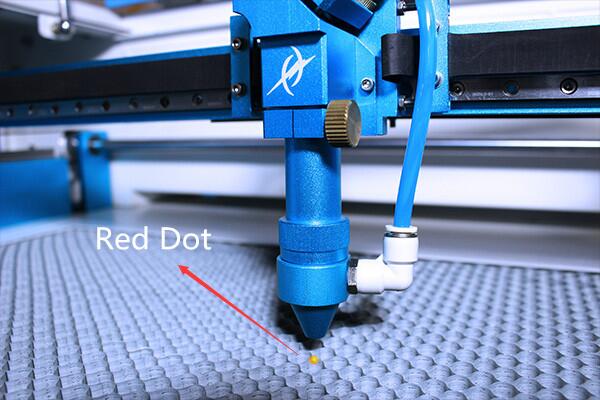

．Nova System Infrared Display Infrared display helps you know the exact position of the laser before cutting and engraving.

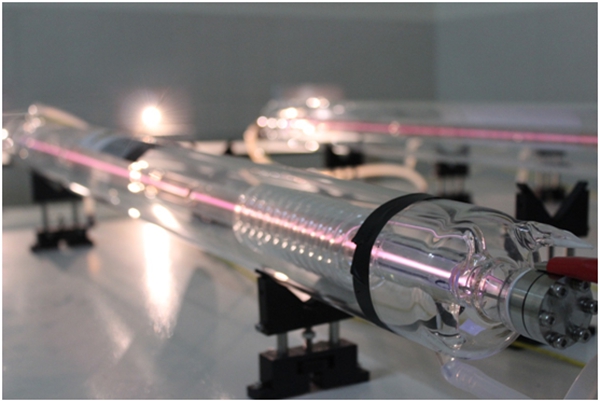

．High quality laser tubes are subjected to rigorous quality testing before being installed in Thunder laser cutter , with a lamp life of approximately 4000 hours.

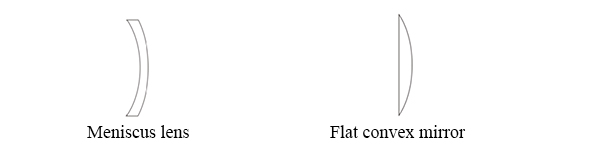

．The focal lens uses a ZnSe focusing lens. All Thunderbolt laser cutters use a concave-convex lens that focuses the laser beam into a smaller, higher energy spot.

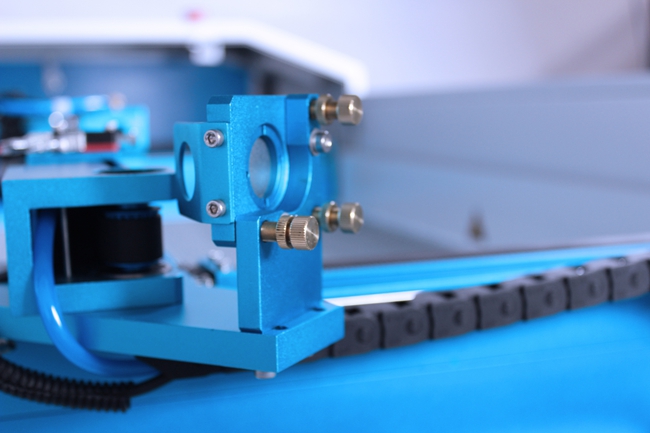

．Molybdenum mirrors are used as standard mirrors for laser cutter Molybdenum mirrors reflect high power laser beams and are durable in harsh environments.

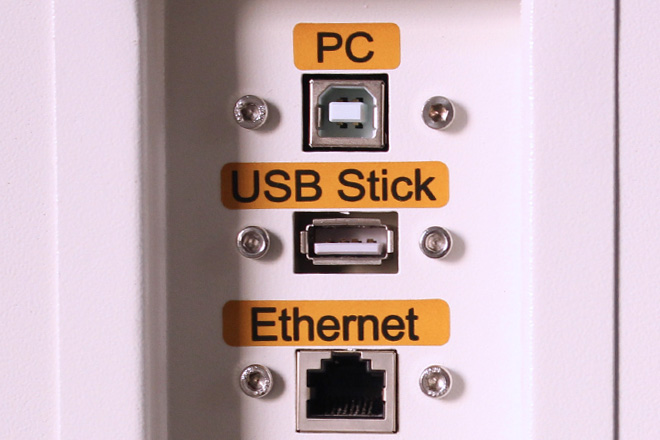

．Simply connect to your computer via network cable or USB.

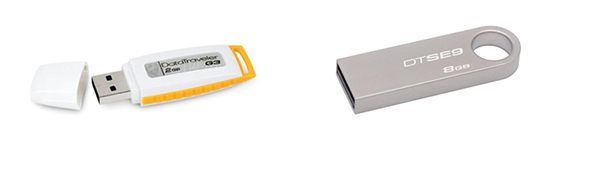

．Save the parameter setting of the completed operation in the software on USB and connect it to the interface of the laser cutter, read the file to create the processed object.

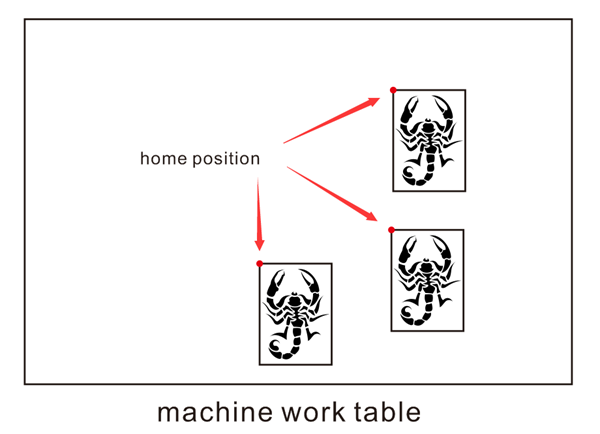

．The start point can be set via the LCD control panel.

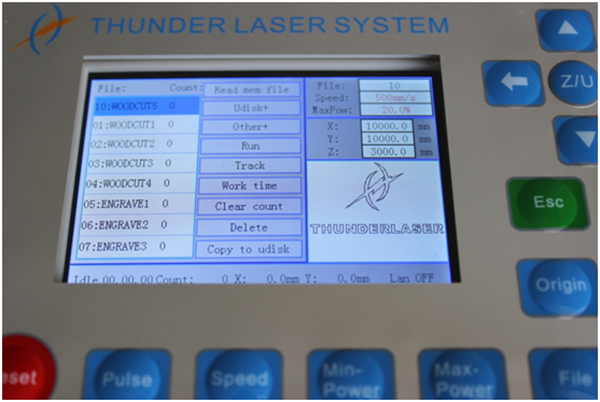

．The large memory capacity includes a 128M buffer for up to 99 files. When used with USB, the laser engraver can be used without a computer.

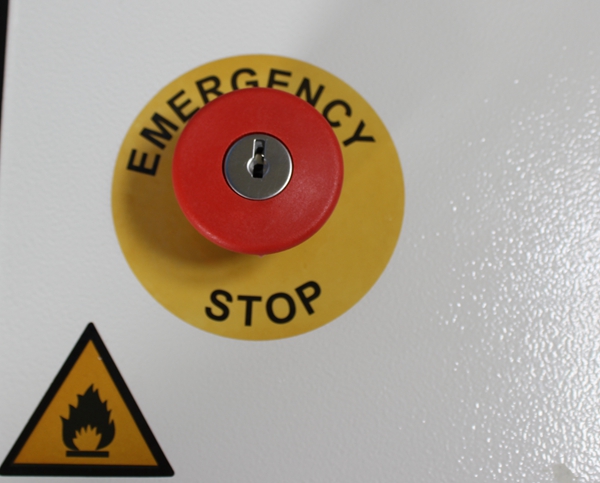

．Nova Emergency Stop System to prevent unnecessary damage in the event of a laser machine failure, all Thunder Laser machines are equipped with an emergency stop switch.

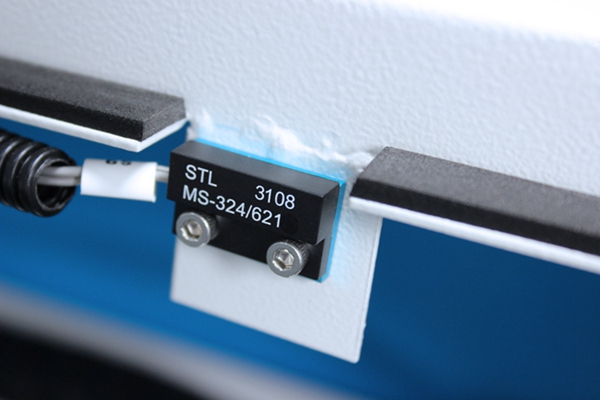

．Nova has a safety protection system; if the top cover is opened while the laser cutter is working, the machine stops immediately and does not restart until the cover is closed, ensuring the safety of the operator.

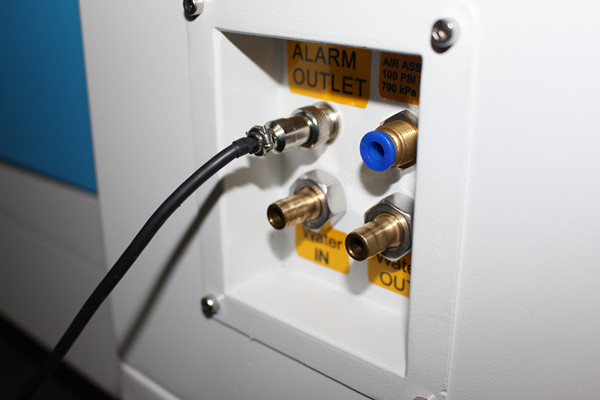

．If the water cooling system stops flowing or the water pressure is abnormal, the system switch will give a warning and stop the laser cutter to ensure the safety of the laser tube.
．Nova system operating status warning light, if the machine is not operating or the cover is closed, the light is green; if the machine is started with the cover open during laser operation, the warning light is red.

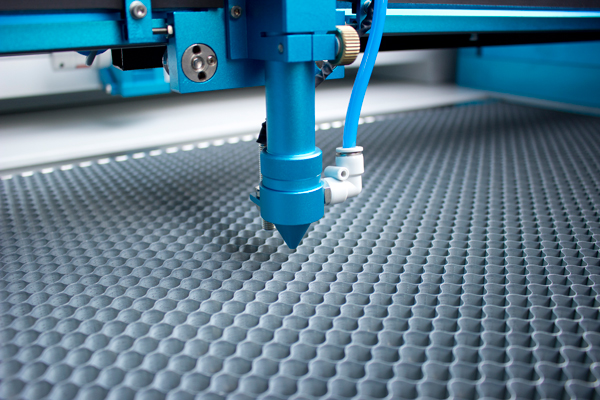

．The standard laser head is suitable for cutting materials less than 10mm thick and is the most commonly used standard equipment that comes as standard with every new Thunder Laser CO2 laser cutting and engraving machine. However, a special laser head is also available for cutting thicker materials.

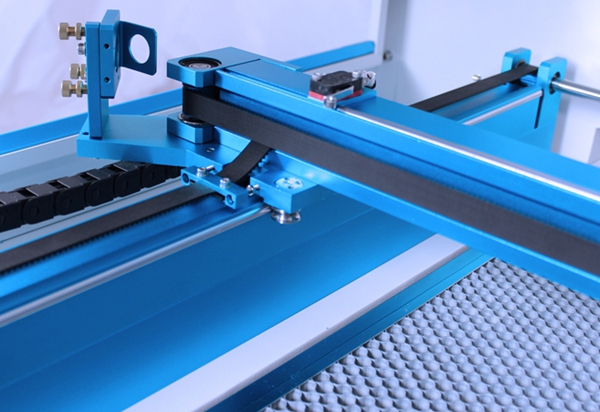

．Nova System Rail A key system for precise positioning, the rail motion system delivers clear, crisp images even at 1000 dpi resolution.

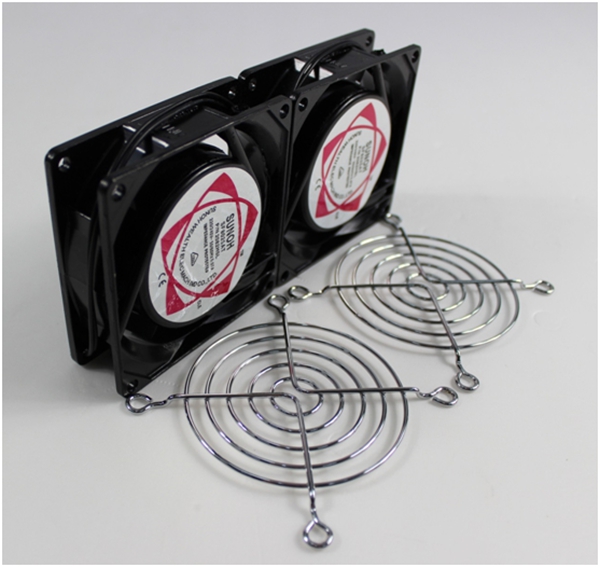

．The low-noise cooling fan allows users to operate the laser processing machine in a quiet and comfortable environment.

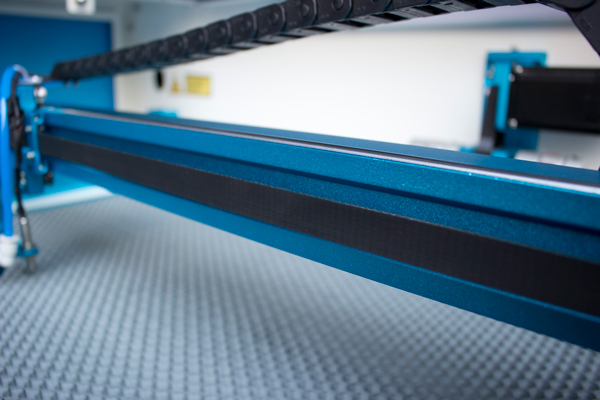

．Thunder Laser laser cutting machine adopts Kevlar conveyor belt, which has stable performance, long service life, wear-resistant and durable. In addition, it has less deformation during the working process, so it can improve the quality of laser engraving.

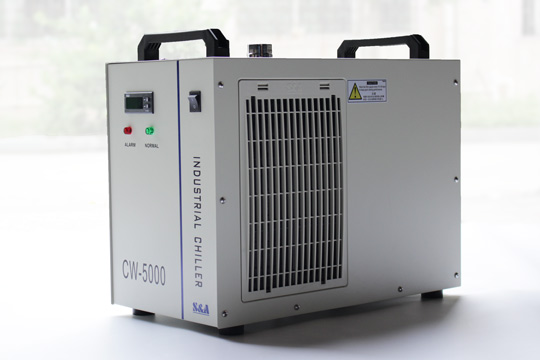

．The water cooling system generates a lot of heat when the laser tubes are operating and a cooling system must be used to protect the tubes.
.jpg "Thunder Nova-63 Laser Cutter Water Cooling System")

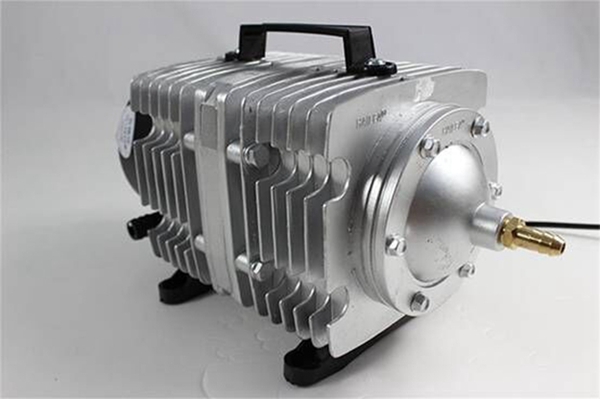

．The air guide prevents objects from overheating and burning during cutting as the air cools.

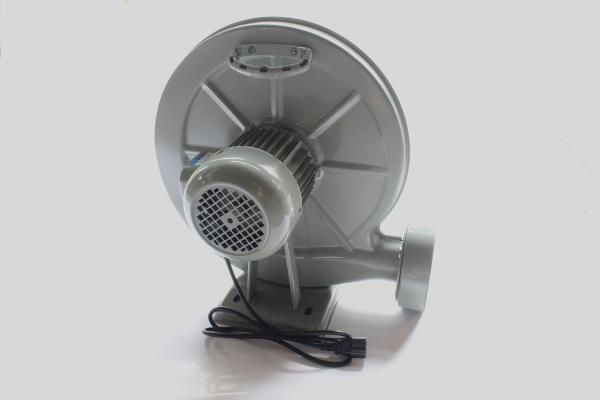

．The exhaust system removes mist and dust in a timely manner to ensure the cleanliness of the finished product and the interior of the laser cutting machine.
With a Thunder Laser cutting and engraving machine, you can immediately enjoy a high-quality laser processing experience.
3DMart offers more than just 3D printing OEM services, contact us to know more about our laser cutting and engraving machines and application examples!
| Laser System |
NOVA 63 |
| Laser Output Power |
100W/130W |
| Work Area |
1600x1000mm |
| Maximum object size (W x L x H) |
Front Door |
1700x1130x230mm |
| Straight to the door |
1700x∞x20mm |
| Work Platform Size |
1691x1095mm |
| Z Axis Height |
225mm |
| Dimensions（LxWxH） |
2200x1505x1100mm |
| Net Weight |
470kg |
| Laser Type |
Sealed Co2 Glass Laser Tube |
| Cooling System |
Water Cooling |
| Movement Control System |
High-speed servo motors |
| Max. Speed |
1000mm/S |
| Speed and Power Control |
Users can set up multiple layers in the laser software and set different speeds and powers for each layer to achieve many different effects at once. |
| File Format Requirements |
JPG, BMP and other image formats, DXF, PLT, CDR, DWG and other vector formats. |
| Resolution (DPI) |
User-controllable from 100 to 500 DPI (standard laser head) and up to 1000 DPI (secondary focus head) |
| Interface System |
Network Interface, USB Interface, U disk Interface |
| OS System |
Windows XP/2000/Vista/7/8/10 |
| Buffer Memory |
128MB |
| LCD Control Panel |
Graphical display of the current machining file and parameters for direct estimation of machining time. |
| Electricity Supply Demand |
110V-240V, 50 or 60 Hz, single phase |
| Ventilation System |
At the rear of the unit there is a 145mm diameter vent for connection to the extraction system. |
