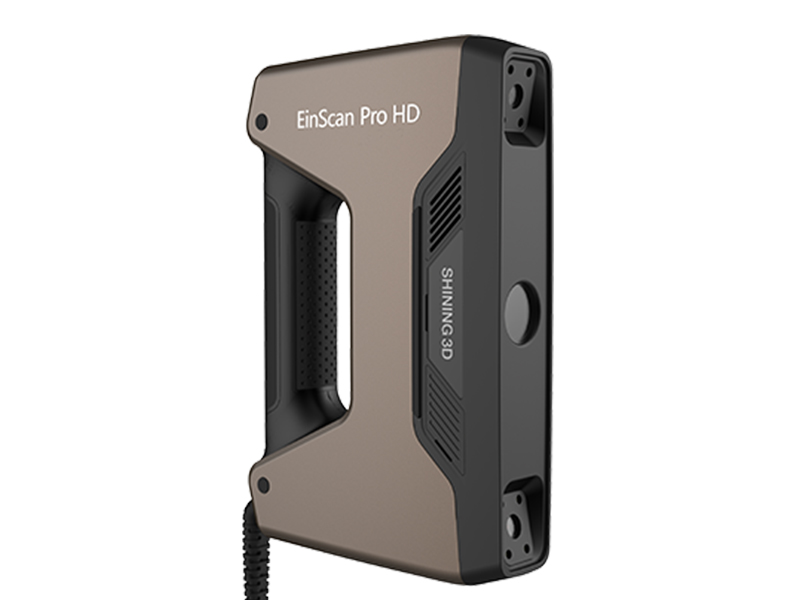

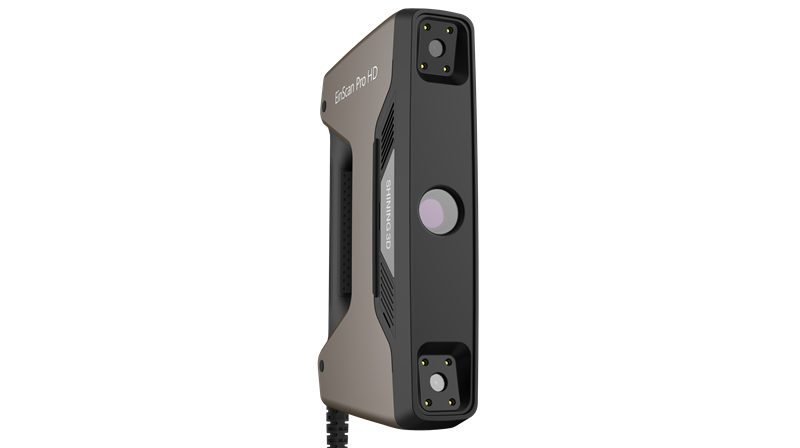

SHINING 3D - EinScan Pro HD Scanner Bundle
Inherited multi-functional and modular design of EinScan Pro series handheld 3D scanner, SHINING 3D EinScan Pro HD delivers unparalleled performance in capturing high resolution and accuracy by handheld scanning. Exceptional versatility and powerful optimizations come together for the ultimate high-efficiency and professional-grade 3D scanning experience. It is reliable assistant for designers and engineers who care about high quality 3D modeling.
Inherited multi-functional and modular design of EinScan Pro series handheld 3D scanner, EinScan Pro HD delivers unparalleled performance in capturing high resolution and accuracy by handheld scanning. Exceptional versatility and powerful optimizations come together for the ultimate high-efficiency and professional-grade 3D scanning experience.
Key features：

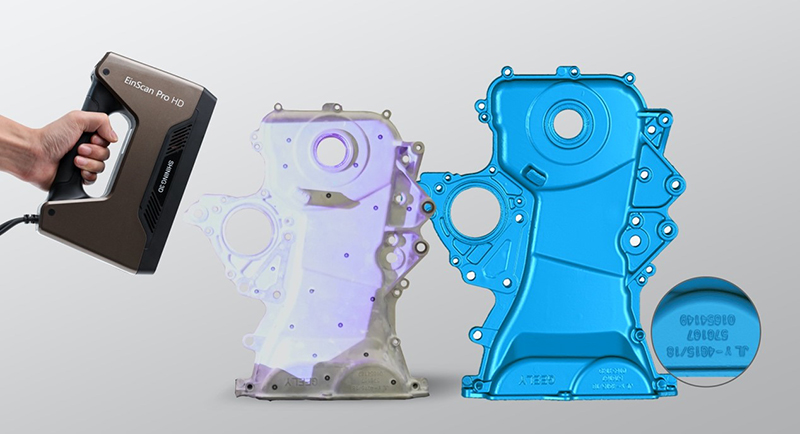

．High quality, high resolution
．Good at scanning dark, cast metal surface, complex structures
．Fast scanning speed, high efficiency
．Light projection texture camera with new structure
．High precision (minimum point distance 0.2mm)

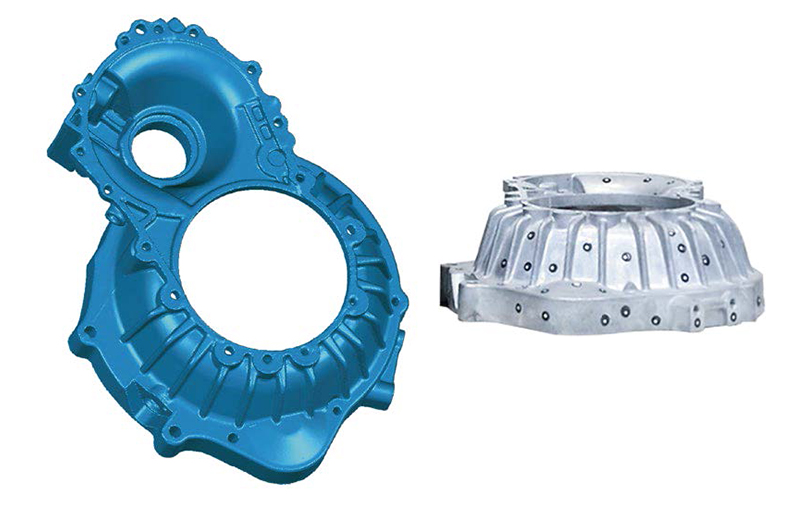

High quality 3D Scanning

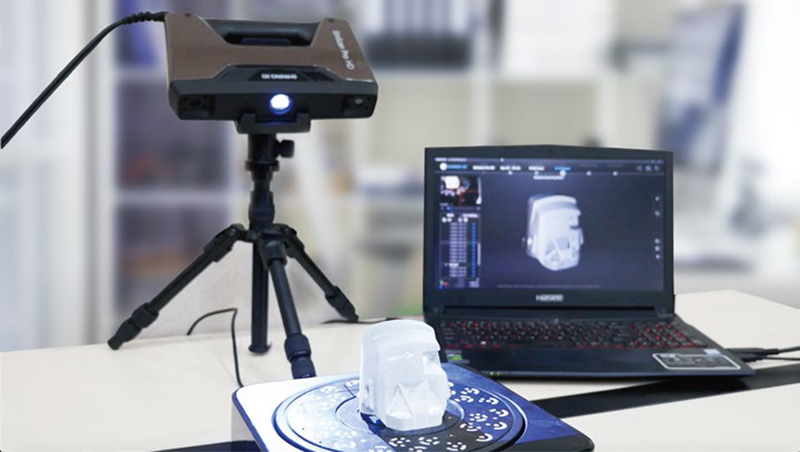

By kinds of positioning methods, both scanner or objects can be moved during scanning. It delivers accuracy up to 0.04 mm in Fixed Scan Mode. Under handheld scanning mode by marker alignment, the volumetric accuracy is up to 0.045mm+0.3mm/m. With multiple scan modes, data alignment and now a full colour texture camera (Colour Pack) and tripod turntable (Industrial Pack), the scanner excels at scanning objects with complex details, extending your scanning experience to more applications and dramatically improving scanning efficiency without the need for additional preparation!

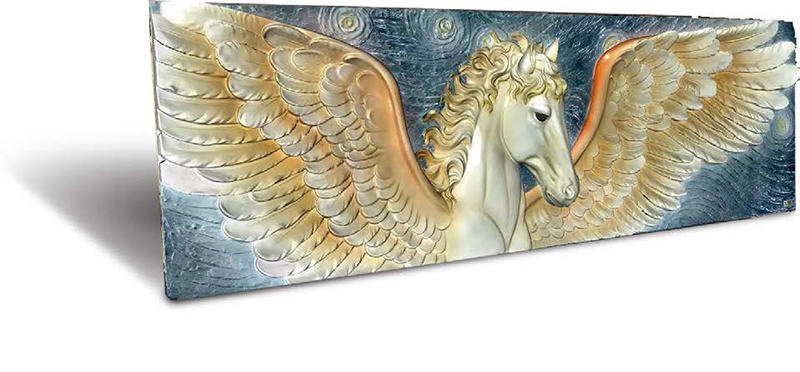

Fast Scanning Speed and Data Transmission
SHINING EinScan Pro HD 3D Scanner has a dramatic breakthrough in scanning capability, processing up to 3,000,000 points per second under handheld scan mode, and less than 0.5s for every single frame in Fixed Scan Mode. USB 3.0 provides high speed data transmission.

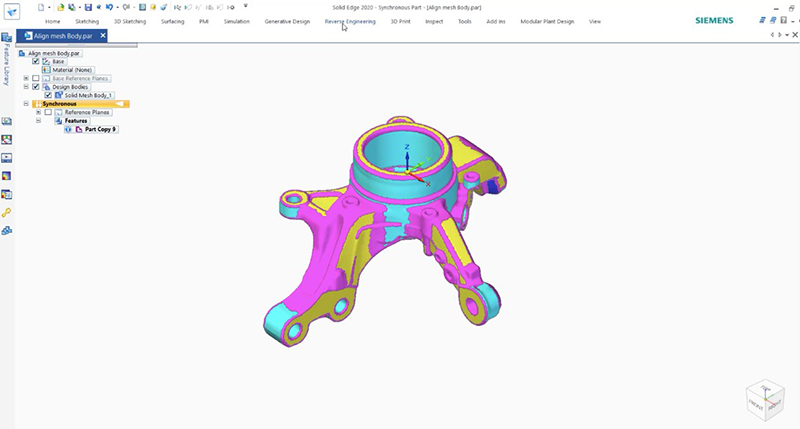

ExScan Pro
Developed by SHINING 3D, ExScan Pro is a professional software for 3D scanning and data processing with a collection of both scan and mesh editing tools for generating high-quality 3D models. EinScan Pro HD, including Solid Edge SHINING 3D Edition with the mainstream 3D CAD design functions, brings a convenient and powerful 3D design tool to help achieve your creative ideas.

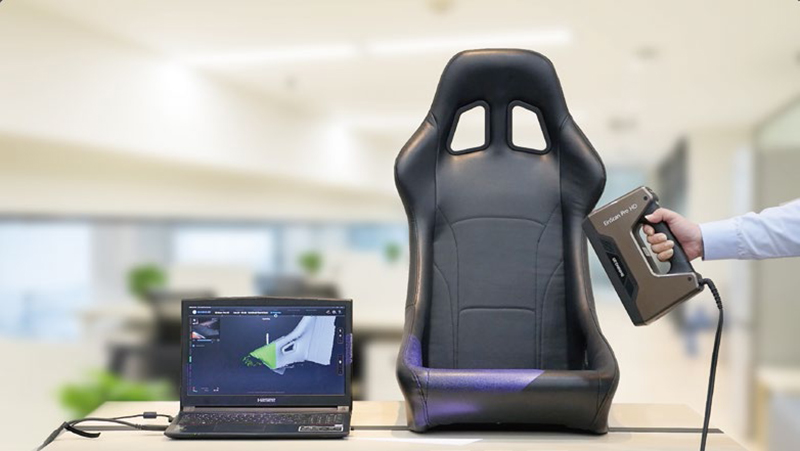

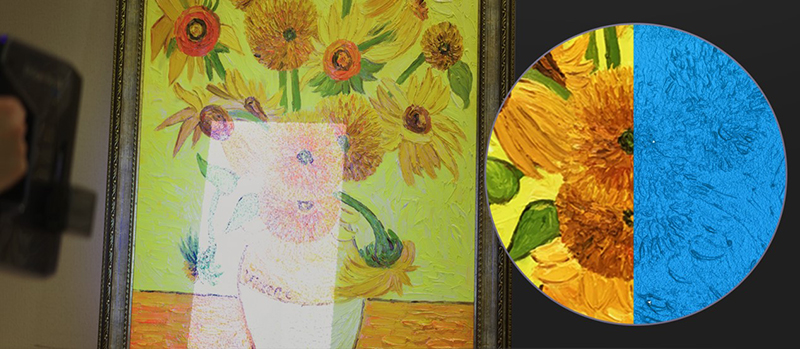

．Art & Design
．Manufacture industry
．3D modeling, 3D printing custom products
．Fine scanning of industrial
．Medical applications (artificial limbs)
Instant Einscan Pro HD Scanner, fast reverse engineering using multiple scanning modes, experience high-quality 3D scanning! Contact us now for more information on Shinin 3D Scanner!
| Scan Mode |
Handheld HD Scan |
Handheld Rapid Scan |
Fixed Scan with Turntable
(with Add-on: Industrial Pack) |
Fixed Scan without Turntable
(with Add-on: Industrial Pack) |
| Scan Accuracy |
up to 0.045 mm |
up to 0.1 mm |
0.04 mm(single shot accuracy) |
0.04 mm(single shot accuracy) |
| Volumetric Accuracy* |
0.3 mm/m (Markers Alignment) |
0.3 mm/m (Markers Alignment) |
/ |
/ |
| Scan Speed |
10 frames/s; 3,000,000 points/s |
30 frames/s; 1,500,000 points/s |
Single Scan＜0.5s |
Single Scan＜0.5s |
| Point Distance |
0.2 mm-3 mm |
0.25 mm-3 mm |
0.24 mm |
0.24 mm |
| Single Scan Range |
209*160 mm——310*240 mm |
| Depth of Field |
±100 mm |
| Working Distance |
510 mm |
| Light Source |
LED |
| Align Mode |
Markers Alignment
Feature Alignment[2],
Hybrid Alignment[3] |
Markers Alignment,
Texture Alignment[4],
Feature Alignment,
Hybrid Alignment |
Turntable Coded Targets, Feature, Markers, Manual Alignment |
Markers, Feature, Manual Alignment |
| Texture Scan |
Yes (with Add-on: Color Pack) |
Yes (with Add-on: Color Pack) |
Yes (with Add-on: Color Pack) |
Yes (with Add-on: Color Pack) |
| Outdoor Operation |
Set up the shelter or cover to avoid direct sunlight |
| Special Scan Object |
For the transparent, highly reflective or some dark objects, please spray powder before scanning |
| Software Included |
ExScan Pro, Solid Edge SHINING 3D Edition |
| Output Formats |
OBJ; STL; ASC; PLY; P3 ; 3MF |
| Scanner Body Weight |
1.25kg (include the USB3.0 cable) |
| Operating Temperature Range |
0-40℃ |
| Operating Humidity Range |
10-90% |
| Supported OS |
Win10,(64bit) |
| Recommended Configuration |
Graphics card: NVIDIA GTX1080 and higher; video memory: >4G, processor: I7-8700, memory: 64G; interface: high-speed USB 3.0 |
| Required Configuration |
Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G |
| Bundle Included |
EinScan Pro HD Scanner
Tripod
Turntable
Color Pack |
[1]. Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.3mm per 100cm.
The conclusion is obtained by measuring the center of sphere under marker alignment.
[2]. Select this alignment when scanning objects with rich geometrical features on the surface.
[3]. Hybrid alignment means marker alignment and feature alignment can be switched automatically.
[4]. This alignment needs Color Pack assisting, and requires rich color texture information on the surface of the object.
SHINING 3D reserves the right to explain any alteration of the specifications and pictures. Please refer to einscan.com to find more information. |

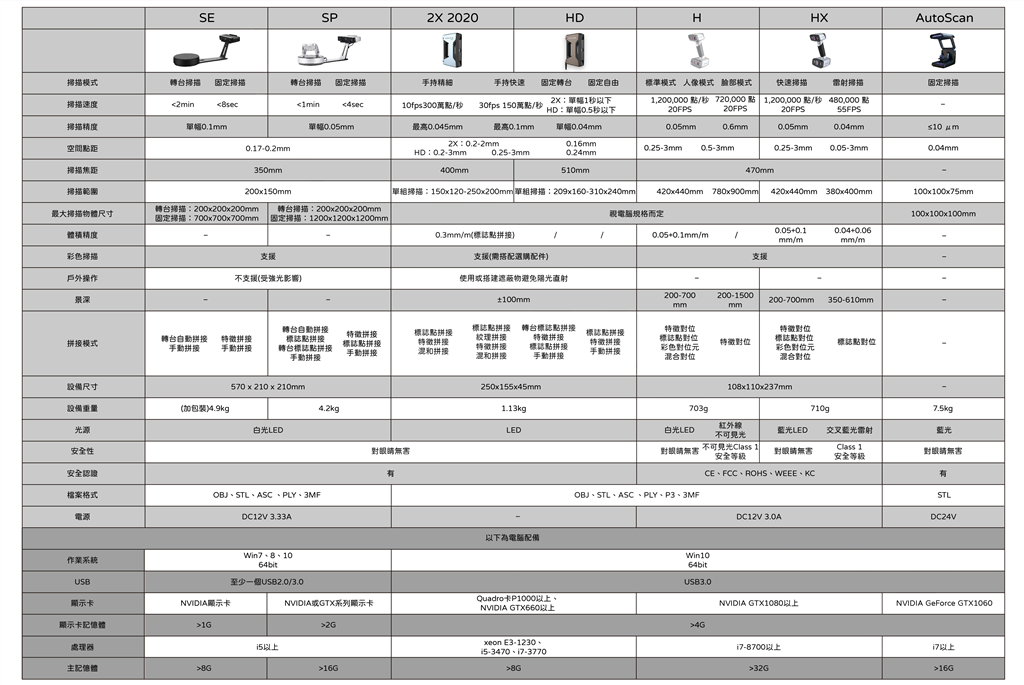

Shining 3D Scanner：Specification comparison sheet
