Snapmaker Artisan 3-in-1 3D Printer
Artisan is Snapmaker latest generation of 3-in-1 3D Printer. Larger, stronger, and more accessible than ever, it's going to be the next desktop powerhouse.
Awarded Product
The Snapmaker Artisan has been awarded CES 2023 Innovation Award, Red Dot in the Red Dot Award: Product Design 2023 and iF Design Award 2023. It stands out in differentiation, function, and idea for its all-metal modular design and was selected as one of the winners among over 10,000 entries.

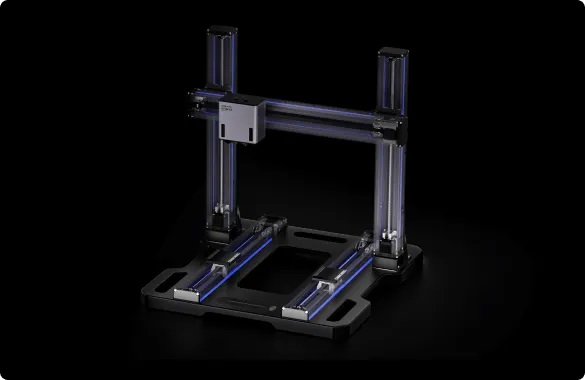

Industrial Grade Transmission Technology
Snapmaker brings industrial-grade transmission technology to desktop fabrication—steel guiderails made by CNC grinding at micron level are embedded in Artisan's linear modules. This leads to a significant raise in precision, rigidity and durability, bringing you a fast, accurate and consistent manufacturing experience.
Large Workspace, Unlimited Creative Ideas
Create as large or as many parts as you like in a large working area of 400 mm × 400 mm × 400 mm.

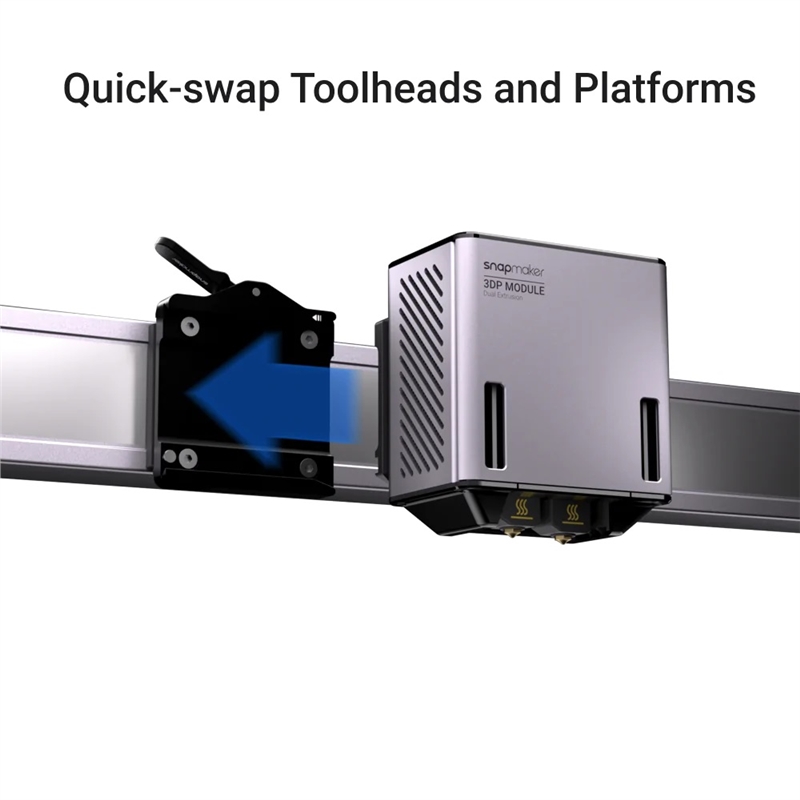

3D Printing Laser Cutting CNC CuttingQuick-swap System

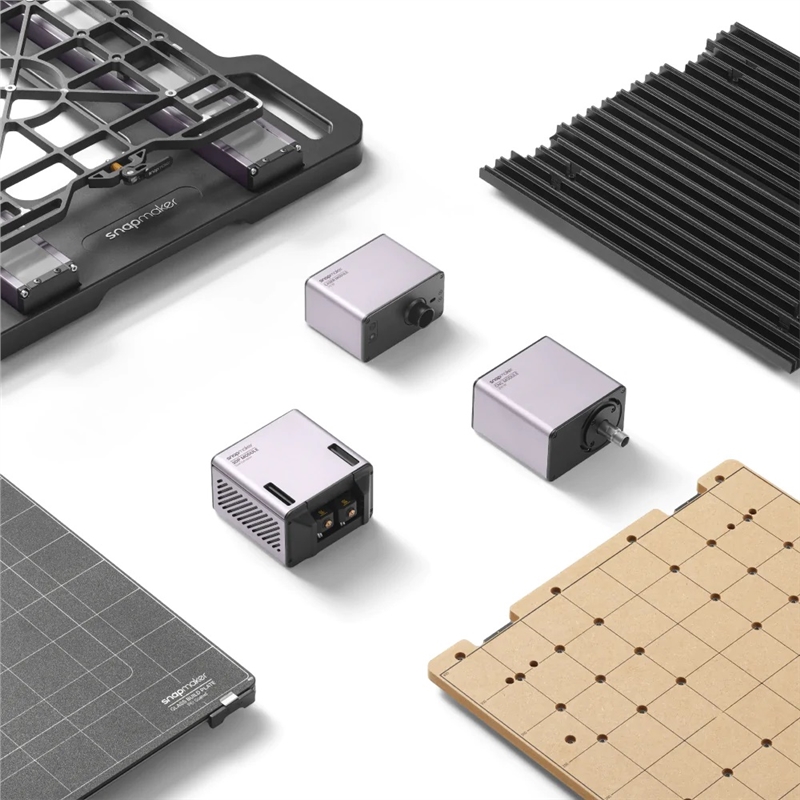

Quick-swap platforms and tool heads allow you to switch between 3 functions in 1 minute.
All-metal Upgrade
While inheriting the iconic all-metal design of the previous generation of Snapmaker, Artisan has also been upgraded with a larger one-piece die-cast base plate. It is stable as a rock, even during high-speed CNC machining.
CNC-milled linear module shell One-piece die-cast base plate 7" Touch Screen for Extra Convenience
Bigger screen have more intuitive UI design, more comfortable operation and smoother creative experience.
All-in 1 CAM support : Snapmaker Luban
The official software Snapmaker Luban provides easy-to-use procedures for 3D printing, laser machining and CNC machining. Three machining methods in one software! It's easy for all users and newcomers to get started!
The latest Luban has a more practical printing mode built in. No need to adjust parameters. Exquisite prints in just a few clicks.
Luban also retains an editing portal for the underlying parameters, allowing a high degree of control over the machining process.
More Powerful 3D Printing
Compared with Snapmaker 2.0, Artisan is fully improved in printing speed, accuracy, filament compatibility and accessibility. High-quality 3D printing at your fingertips!
．Fast and precise
With an optimised transmission system and motion control algorithms, the Artisan features ± 0.1 mm dimensional accuracy at high print speeds of 180 mm/s.
．Fast Swap, Swap at Will
In addition to the module and build plate, the printheads are also supported by Luban's nozzle auto-recognition and parameter matching function, which allows for quick swap between large diameter or hardened steel nozzles, making it easy to obtain different types of printed parts such as prototypes and high-strength parts. The Dual Extrusion 3D Printing Module also has a motor built in to automatically lift and shift between two extruders, without extra printhead movement or switch toggling. This enables faster and quieter dual-extrusion 3D printing.
．Dissolvable Support Printing
Artisan's dual-extrusions 3D printer support PVA, HIPS and other dissolvable materials. No worry about complex geometries, and the finished support structure has a flat and smooth surface.
．Easy-to-remove Support
The break-away filaments provides the same support as ordinary printing materials and is much easier to remove without further post-processing.
．Save Time and Power with Zone-Heated Bed
In the middle of the Artisan heated bed there is a 260 x 260 mm high temperature zone (also known as the inner zone) with a maximum temperature of 110°C and an outer zone with a maximum temperature of 80°C. When your model is placed in the inner zone it takes only 2-3 minutes to heat up to 60°C and the outer zone is not heated, thus saving time and energy.
． 3 Easy Steps to Calibration
Artisan automatically calibrates the heated bed and the Z-axis offset of the two nozzles, then semi-automatically calibrates the nozzles against each other in the X and Y directions. After 3 steps, you have a perfect adhesion and alignment on dual-material or bicolor printing.
．Two-side. Multi talented.
The Artisan new build plate is made of glass with a higher degree of flatness, ensuring a smoother and more adhesive first layer. The smooth glass on one side and the PEI coating on the other facilitate the adhesion of various printing filaments.
．Higher Performance, More Possibilities
With improved print temperatures, nozzle hardness and slicing algorithms, Artisan can print on more advanced materials.
More Powerful Laser Engraving and Cutting
With the latest 10W laser module, Artisan is able to achieve faster and deeper cuts in a wide range of materials, with much greater engraving accuracy.

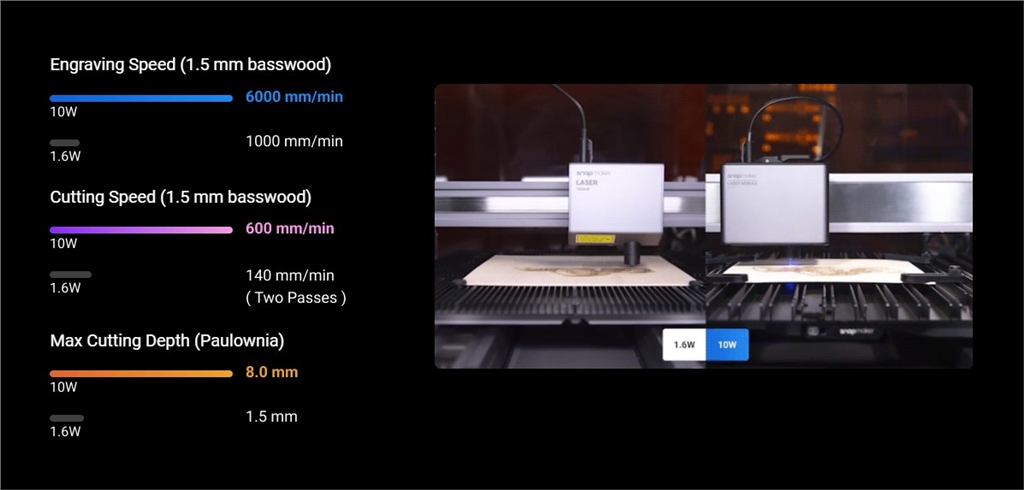

．1.6W and 10W Laser Comparison
The 10W laser module can engrave at a speed of up to 6000mm/min and cut through wood up to 8mm thick in a single pass. To put this into perspective, the cutting speed is up to 8 times faster than the 1.6W laser module.
．Not Just About Strength, but Finesse

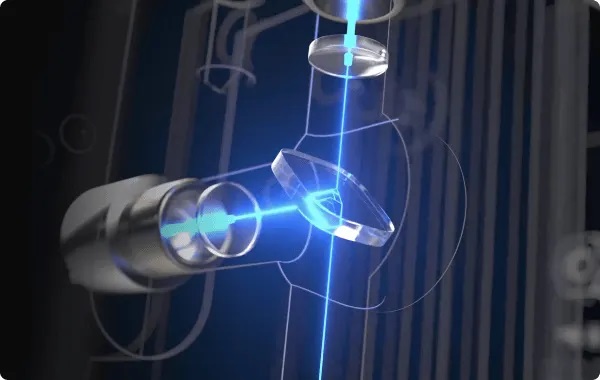

The laser module is supported by a laser beam splitter and beam shaping optics with 10W high power and ultra-fine laser focus (0.05 mm × 0.2 mm). The result is a high quality laser process with impeccable detail.
．Ergonomic Design, Effortless Creation
Snapmaker strives to improve the machine performance while simplifying the workflow, allowing users to focus on realising ideas rather than other time-consuming setups, with powerful yet simple features.
Triangulation technology：calculates the thickness of materials and completes auto focus in seconds.
Wide-angle Camera：captures your material in one take and lets you get an instant preview of your laser job in Luban.
．Support Multi-Materials
From soft materials like leather and fabric to hard ones like stone and metal, they can all be your canvas.
More Powerful CNC Carvinn and Cutting
The Artisan is equipped with a 200W CNC module to further enhance CNC machining performance, while retaining the ER11 chuck which highly acclaimed by users , special fixture and dust protection design for a new desktop CNC experience.
．0.2mm Size Accuracy
The high-rigidity linear modules and high-speed spindle enable the CNC module to smoothly carve or cut a wide range of materials with a dimensional accuracy of up to 0.2mm.
．No Worry for Choosing the Materials
The increased CNC performance brings a wide varirty of materials. The 200W CNC module allows easy precision machining of hard materials such as hardwoods (beech, walnut) and jade.
．Bring your ideas to life at home
Artisan is supplied with an enclosure that reduces the laser from Class 4 to Class 1.
．Safety in use
Artisan can automatically stop the laser or CNC job if any door is opened using the door-detection sensor.
The laser module incorporates a gyro sensor to ensure that no laser beam is emitted if the module deviates from its intended position.
Artisan have incorporated an emergency stop button into the controller, and the process paused by the button can be resumed.
The laser module will automatically stop when the detection temperature is higher than the normal operating temperature (above 55°C).
