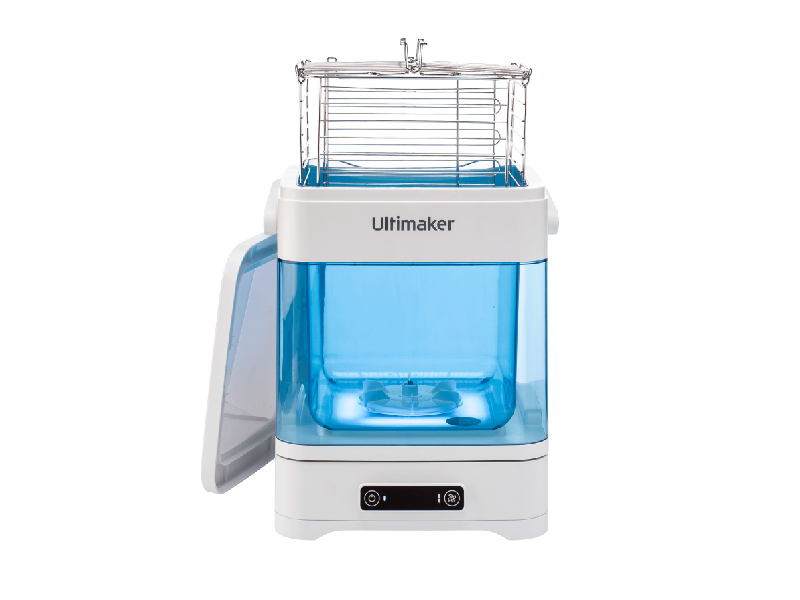

Ultimaker PVA Removal Station
Simple Post-processing for Time Saving
Make complex design or stunning visual prototypes post-processing faster and easier when using PVA support materials with the Ultimaker PVA Removal Station. Using the same series of 3D printing products from the beginning to end ensures faster design iterations, minimize operation time without causing confusion.

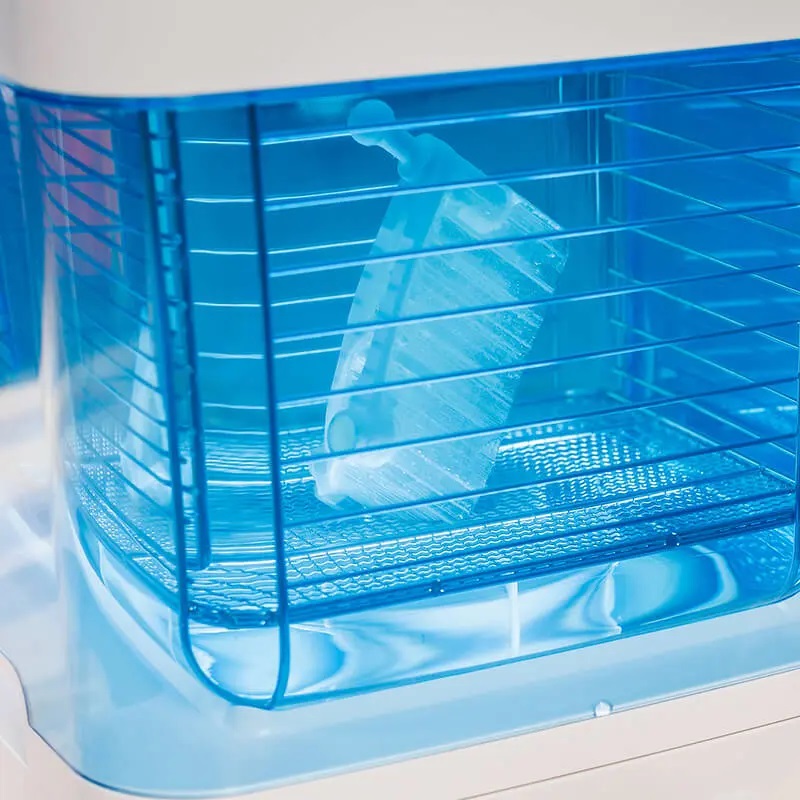

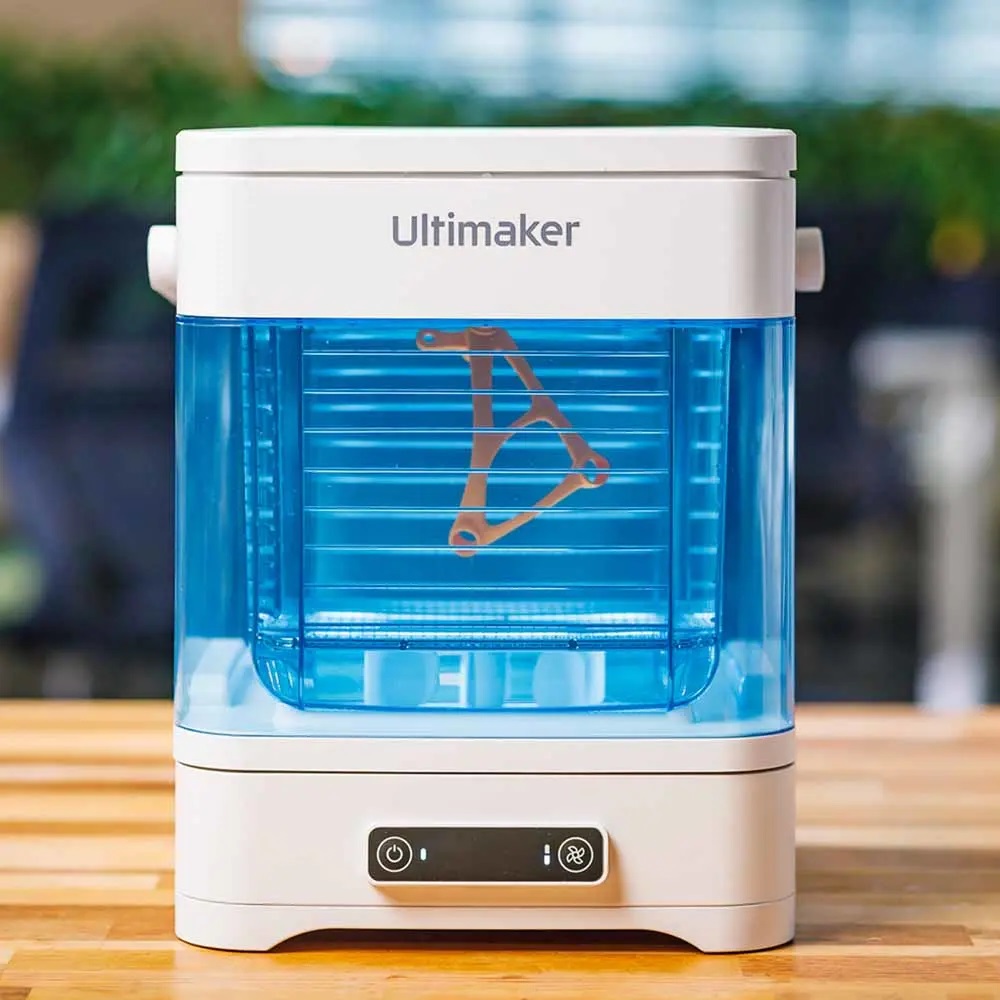

Remove PVA up to 4 times faster
The Ultimaker PVA Removal Statione is driven by a magnetic rotor, enabling a high-speed dissolution process. It can remove PVA four times faster than removing PVA in a temporary container using motionless water, even from hard-to-reach cavities.

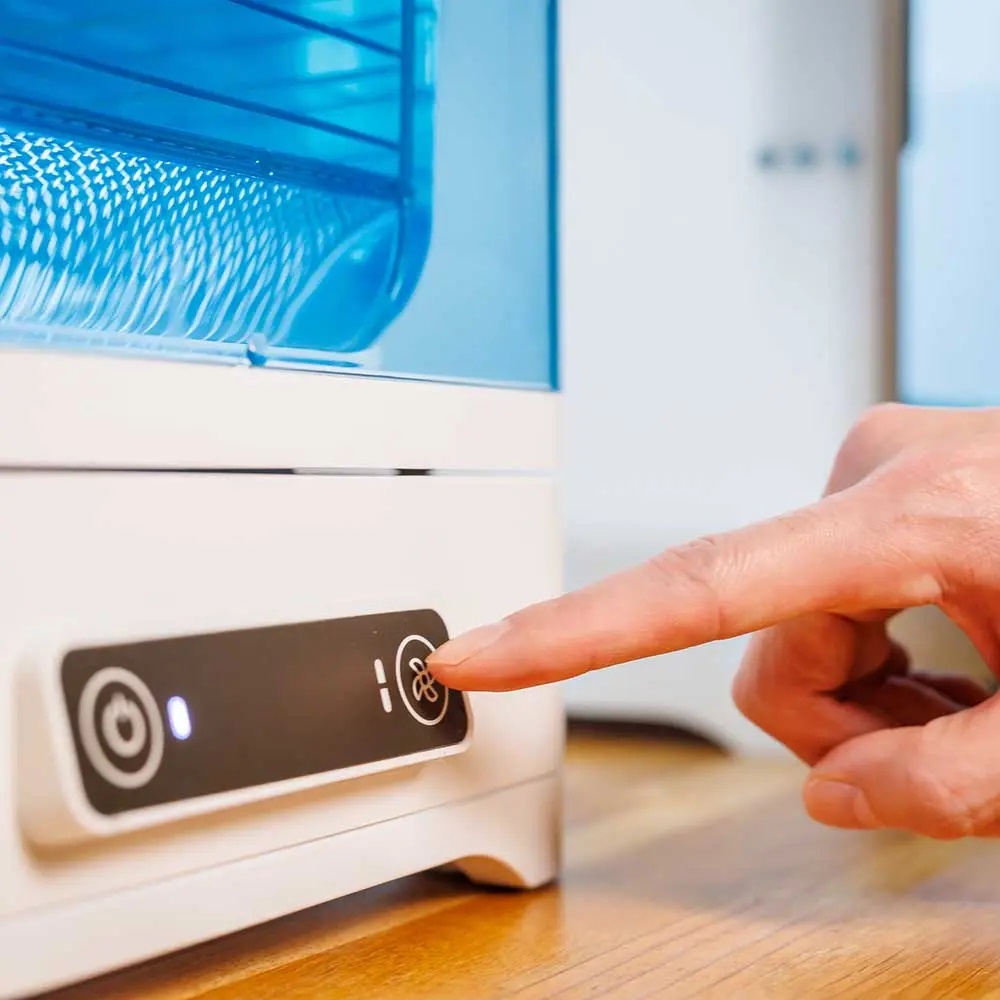

Low effort, higher productivity

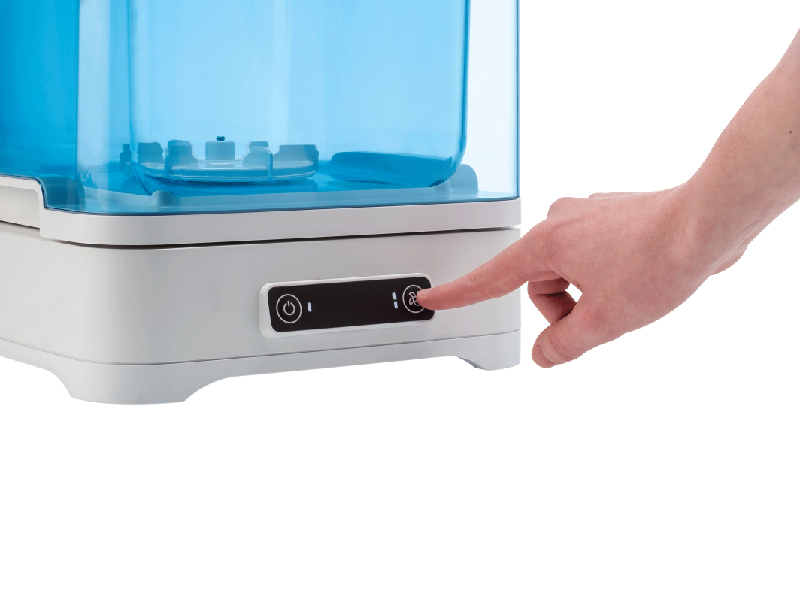

The Ultimaker PVA Removal Station reduces operator time up to 80%, it takes only a few minutes per print with minimal maintenance needs. Just press the start button and leave it to operate, and you'll be able to remove the items while continue working.

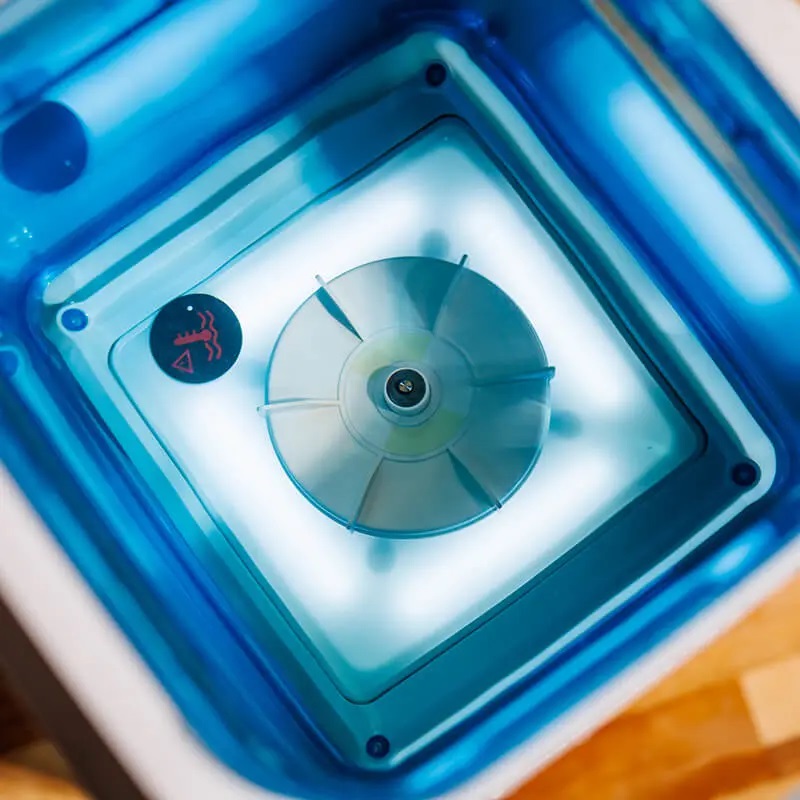

Water circulation driven by rotors
Depending on the fragility of the part choose 100 or 225 RPM cycles. The rotor changes direction in every two minutes and pushing the water evenly through the model.

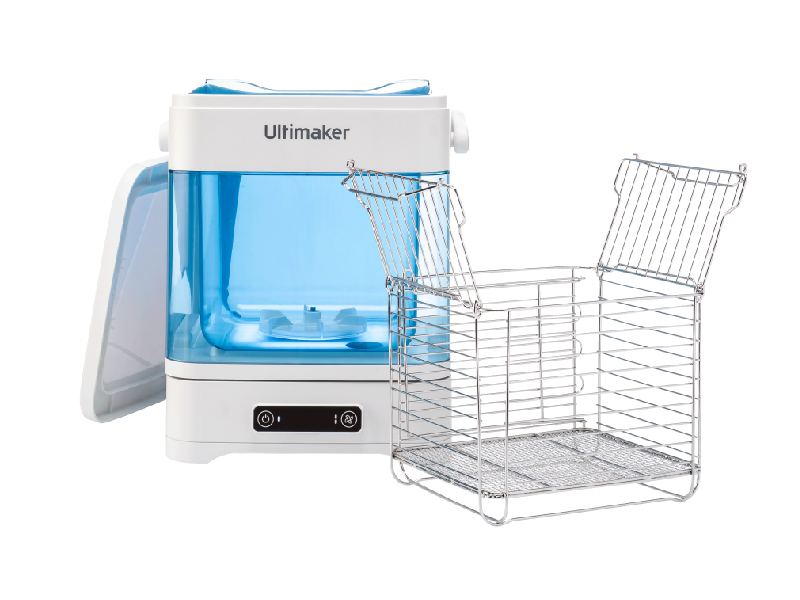

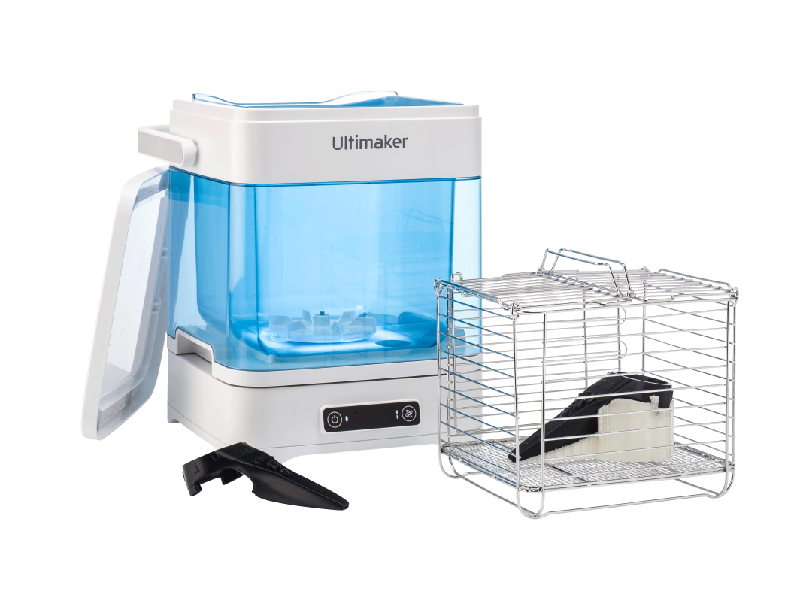

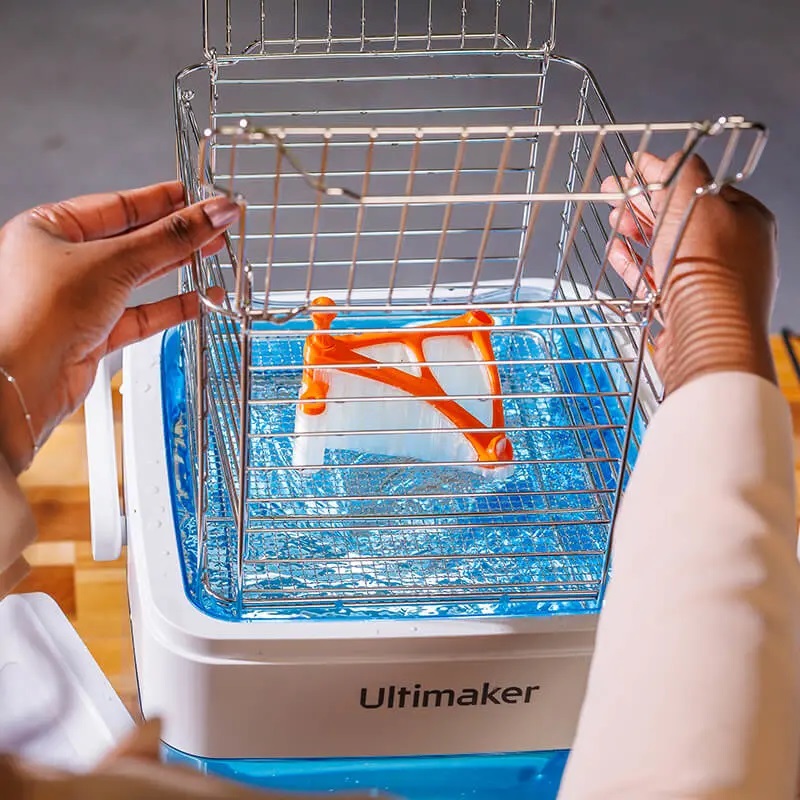

Keep print secured
The rinse basket allows the finished print to be safely placed in the water, then lifted the rinse basket and the water will drain naturally, allowing the finished print to be easily to get.
Easy to follow process
The illuminated transparent container makes it easy to know exactly when you are ready to rinse. The screen also shows a reminder when the water needs to be replaced.

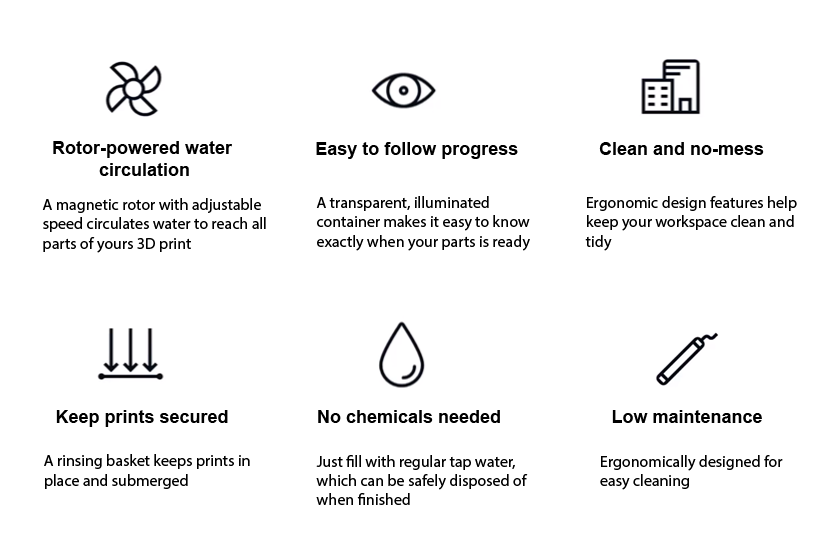

The Key features
| Container Volume: |
13.7 liters (3.6 US gal) |
| Maximum Capacity Size: |
200 x 230 x 165 mm |
| Supported Materials: |
Optimized for PLA and PVA.
Also suitable for PETG, Tough PLA, Nylon, CPE combined with PVA.
(Also support third party similar materials) |
| Supported Solvents: |
Water |
| Rotor Speed: |
225 RPM（normal）
100 RPM（low） |
| Operating Sound: |
< 50 dBA |
| Dimensions: |
303 x 325 x 374 mm |
| Dimensions with Handle Extended: |
303 x 325 x 528 mm |
| Net Weight: |
6.35 kg |
| Container weight (when empty): |
4.2 kg |
| Shipping Box Dimensions: |
400 x 400 x 500 mm |
| Shipping Weight: |
8.5 kg |
| Operation Area Temperature: |
15 – 32 °C |
| Non-operating Temperature: |
0 – 32 °C |
| Relative Humidity: |
10% – 90% RH（non-condensing） |
| Voltage: |
100 – 240 VAC |
| Frequency: |
50 – 60 Hz |
| Wattage: |
38W |
| Warranty: |
1 year |
